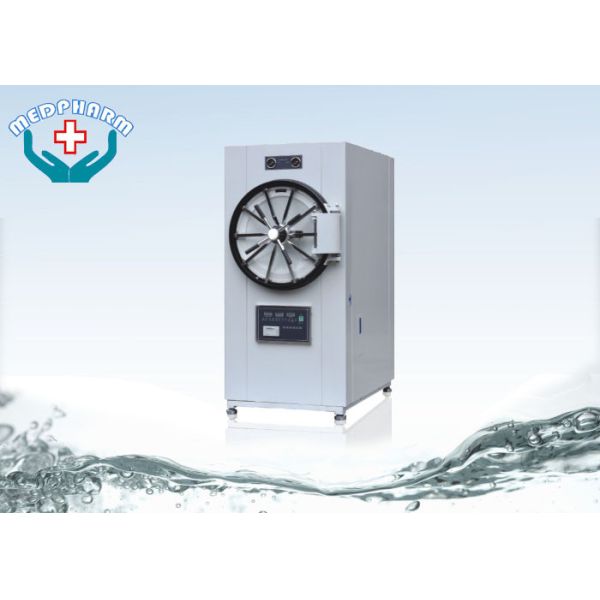

Adjustable Timer Controller Medical Autoclave Sterilizer With Over Pressure Protection
Benefits
- Thorough drying improves sterilization results
- Faster drying for a shorter overall cycle
- 0.22um air filter provides sterile, bacteria-free air for drying
- Rapid cycles optimize the availability of ready-to-use sterile instruments
- Easy-to-use, single touch control system increases productivity
- Enhanced monitoring for consistent documentation of sterilization results
- Long lasting, easy to maintain autoclaves guarantee virtually no downtime
Features
1. Door safety locking system
2. With digital adjustable timer and digital adjustable pressure/temperature controller
3. Beep alarm and shut off after cycle finish
4. Safe protection of water lack, over temperature, over pressure
5. Full structure of stainless steel
6. With micro-printer(optional)
7. Digital LED display of temperature and time and controlled by micro-computer
8. Drying system
9. Working process indicator
Specifications
| Safety material | Chamber of SS304,Stainless steel frame and cover |
| Max working pressure | 0.22MPa |
| Max working temperature | 134℃ |
| Adjustment of temperature | 105---134℃ |
| Adjustment of Timer | 0---99min |
| Chamber temperature difference | ≤±2℃ |
| Power | AC380, 3P/N/E, 50Hz |
Optional models
| Order No. | Chamber( mm ) | Dimensions( mm ) | Package Dimensions | NW/GW | Power |
| HT-150YDD | 150L(φ440 *1000) | 1400*650*1600 | 1560*820*1820mm | 340/430Kg | 9KVA |
| HT-200YDD | 200L(φ515 *1000) | 1400*750*1700 | 1560*910*1880mm | 350/436Kg | 9KVA |
| HT-280YDD | 280L(φ600 *1000) | 1520*910*1900 | 1680*1080*2100mm | 462/570Kg | 12KVA |
Applications
The steam sterilizer is a highly safe sterilizing product with stable function, suitable for major
hospitals, clinics and biochemical research laboratories etc., for the sterilization of instrument,
cloth, glassware and liquid etc.
